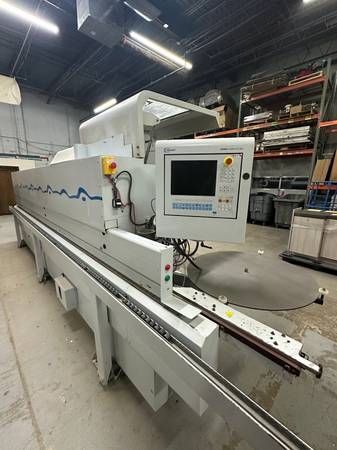

Brandt Edgebander (Needs PLC) - $5,450 (Omaha)
8800 F St near 84th
QR Code Link to This Post
Specifications:
Edge cap thickness: 0.4 - 15 mm (5/8")
Panel thickness: 5/16" - 2-3/8"
Minimum panel length: 160 mm (6-3/8")
Minimum panel width: 65 mm (2-3/8")
Control system: PC-20 Program Control with 12" Industrial PC screen
Premilling unit: 2 motors, 3 HP each (12,000 RPM)
Glue system: Quick heat up (approx. 10 minutes)
Coil capacity: 800 mm diameter
Double-end trim motors: 2 x 0.5 HP (12,000 RPM)
Flush/radius trim motor: 0.75 HP (12,000 RPM)
Buffing motors: 0.25 HP (2,800 RPM)
Features: Corner rounding unit, automatic magazine for strip & coil, top & bottom scraping, programmable bevels 0° - 15°
Key Features:
- Advanced PC-20 Program Control with 12" industrial touchscreen
- Quick heat glue system (only 10 min warm-up)
- 2-Motor Premilling unit with straight/chamfer capability
- Corner rounding unit for perfect finish
- Double-end trim with programmable controllers
- Top & bottom flush/radius trim with bevels 0°-15°
- Automatic magazine for strips and coils (handles large 800mm diameter coils)
- Top & bottom scraping and buffing for professional results
This machine offers Line Control with no limit switches, pressure beam height adjustment with digital indicator, and automatic temperature management. The glue system features easy maintenance, quick color changes, and automatic temperature reduction during idle periods.
Minimum panel requirements: 160mm length, 65mm width.
