KOCH SPRINT 200 FEED-THRU BORING & DOWEL INSERTER - $125,000 (Omaha)
QR Code Link to This Post

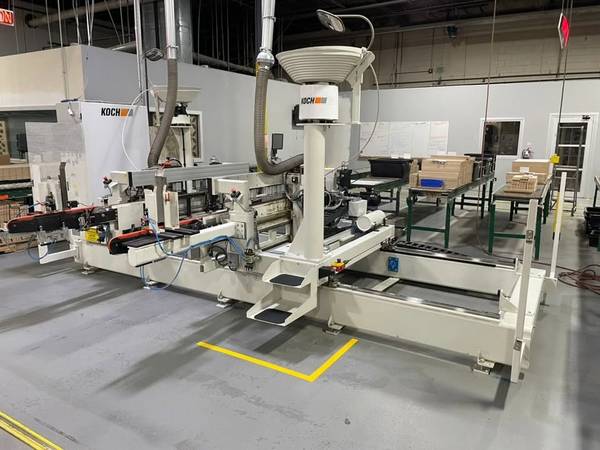

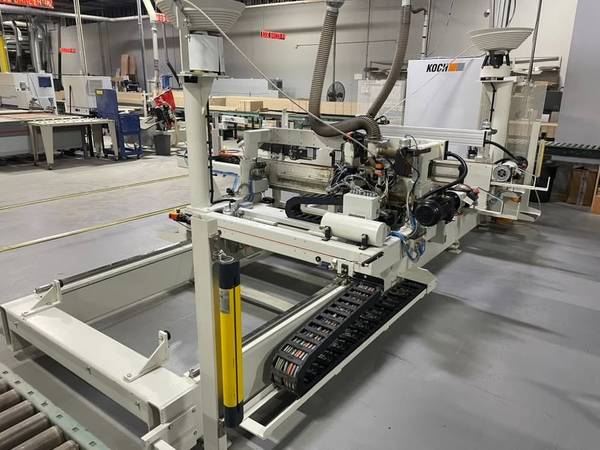

Double end, automatic BGD machine for straight work pieces with: (2) PTP Bore, Glue & Dowel Units & Automatic Belt Feeding.
VALUE NEW: $295,000
Working Dimensions
Stock length: 10.8" - 98.4" (275 - 2,500 mm)
Stock width: 2-3/4" - 27-1/2" (70 - 700 mm)
Stock thickness: 0.59" - 1.18" (15 - 30 mm)
NOTE: Specified dimensions do not allow all possible combinations.
Drilling Stations

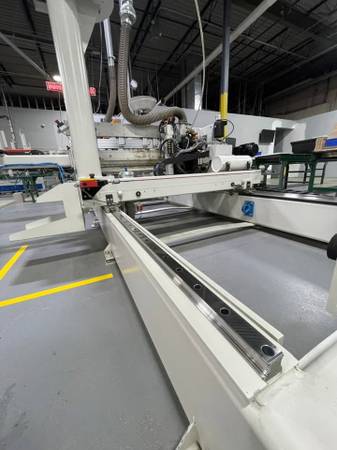

Each side traveling on "precision" linear guides
(1) Horizontal drilling unit with: (1) 1.2 HP (0.9 kW) - 7,200 RPM motor
1.1" (28 mm) Max. drilling depth; total length of drill bits: 2.76" (70 mm)
Dowel Inserting
Dowel dia.: 8 mm; dowel length: 30 mm; dowel projection: 7 - 14 mm
(2) Vibrating hoppers with: (1) Outlet tube for feeding of dowels on each side
Dowel size: 8 mm dia., 30 mm in length, and 7 - 14 mm projection
Operating Process
Stationary machine side is on the left side (seen in transport direction) and not adjustable
Machine is equipped with Stock feed belts; belts move the workpiece to the BGD station and clamp it into position for processing
Workpiece is transported out of the machine after processing is complete
The workpiece is transferred to the next machine or taken out manually
Complete with:
- Central lubrication for working units
- Air pressure intensifier with 2:1 ratio for constant compressed air supply for glue valves
- Hopper Infeed Device
- Separate drive for outfeed belt
- Tele-diagnostic service compatible
- Perimeter Safety Devices
- All Docs, Manuals, Tools, Spare Parts associated with this machine
