Torit Mist Collector (WSO 20) - $2,950 (Omaha)
8800 F St near 84th
QR Code Link to This Post
Specifications:
Nominal Airflow: 1,230 cfm (2,089 m³/h)
Number of Filters: 1
Filter Height: 20 inches (508 mm)
Filter Area:
Water: 167 ft² (15.5 m²)
Oil: 146 ft² (13.6 m²)
Smoke: 113 ft² (10.5 m²)
Motor: 3 hp
Shipping Weight: 285 lb (129.3 kg)
Dimensions (without afterfilter):
A: 28.0 inches (711.2 mm)
B: 26 inches (660.4 mm)
C: 49.1 inches (1247.1 mm)
Dimensions (with afterfilter):
C: 60.6 inches (1539.2 mm)
Sound Level: 70 dB(A) without afterfilter, 68 dB(A) with afterfilter
Features:
- Mild Steel Construction
- Inlet Hopper with Collar
- Integral Power Pack (motor and fan)
- Machine Mount or Floor Mount options
- P-Trap Assembly
Filter options:
- First-Stage Wire Mesh
- First-Stage Polypropylene Mesh
- High Efficiency First-Stage
- Synteq XP for Water Soluble
- Synteq XP for Straight Oil
- Synteq XP for Smoke
- Textured Multi-Coat Paint Finish with 2,000-Hour Salt Spray Performance

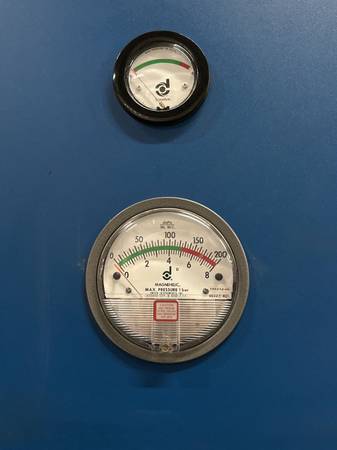

- Magnehelic Gauge
- IEC Motor Starter
- Type 12 (NEMA & UL) Motor Starter options
- Junction Box - Mounted & Prewired
Additional Info:

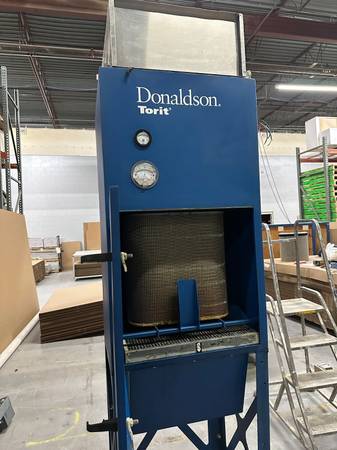

The Donaldson Torit WSO 20 is a versatile mist collector designed to handle three types of mist applications: water-soluble coolant, straight oil, and oily smoke. It features revolutionary Synteq XP Media Technology engineered for superior draining, resulting in lower pressure drop and longer filter life.

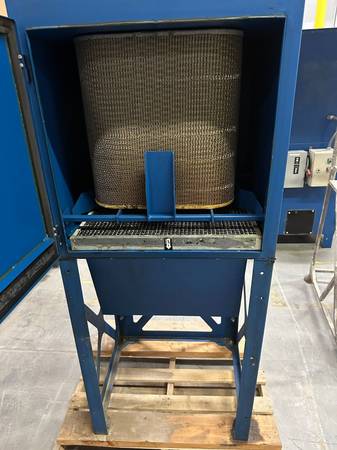

The WSO 20 uses a cross-flow filter design that promotes optimal drainage by flowing dirty air horizontally through the filter walls, perpendicular to drainage flow. With 1,230 cfm airflow capacity and a 3 HP motor, this collector can be machine-mounted or floor-mounted, making it ideal for CNC machines, machining centers, and other industrial equipment.
The unit includes a unique high-performance fan with available external static pressure for ducting and can be easily modified with a simple filter change based on your specific application needs.
S/N: 4057201-01-01-01
