2020 Honda Pioneer 1000-5 Deluxe - $10,995 (Motoplex WAREHOUSE SALE)

2020 Honda® Pioneer 1000-5 Deluxe

Some jobs are just too big for one person to tackle alone—you’ll need to bring the whole crew. Or maybe you just want to have some fun outdoors, and don’t want to leave anyone behind. No problem—that’s why we offer our Honda Pioneer 1000-5 models. With room for five occupants, they feature the same smart technology, superior materials, and refined engineering as our three-seat Pioneer 1000 side-by-sides, along with Honda’s world-famous reputation for reliability and quality.

Features may include:

ENGINEERING

• I-4WD

The Pioneer 1000-5 Limited Edition showcases our exclusive I-4WD system. Think “I” for “Intelligent,” because that’s exactly what it is. An industry-first brake-traction control system for side-by-sides, it simplifies operation, increases drivability and optimizes traction. Using proven, advanced technology from Honda’s automotive division, you get the benefits associated with a locked front differential with none of the downsides. That means it maintains front-wheel traction even if one wheel wants to spin on ice or mud or if it’s in a hole. But at the same time, you get the lighter steering, better tracking at high speeds, tighter turning radius, and reduced kickback associated with unlocked front differentials.

PERFORMANCE

• POWERFUL 999cc TWIN-CYLINDER ENGINE

When you know the power you need is always at the ready, every drive is an enjoyable experience. And that’s precisely what you get out of the class-leading 999cc liquid-cooled inline twin. Using the same Unicam® cylinder head design found in our motocross bikes, it’s more compact in size, and it still delivers the kind of horsepower and torque you’d expect from a flagship model.

HANDLING

• CHASSIS AND SUSPENSION

Prepare to go further than ever before. Our refined chassis enables you to tackle terrain others would shy away from, with larger tires, long-travel independent front and rear suspension and huge ground clearance. The rubber mounted engine and exhaust system insulates against excessive vibration and the self-leveling rear suspension compensation for changing loads. Plus, the Pioneer 1000-5 Limited Edition gets premium, quick-adjust FOX QS-3 shocks on all four corners.

VERSATILITY

• QUICKFLIP® SEATING

Want to bring an extra one or two passengers along for the ride? Two QuickFlip® seats pop up from the cargo bed on Pioneer 1000-5 models, giving you the extra seating you need, when you need it. Exclusive to Honda, it’s a smarter system than fixed seat, multi-row models, giving you better maneuverability on the trails.

COMFORT

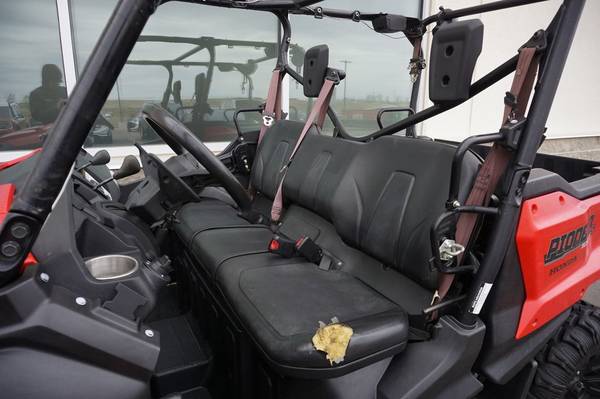

• 3-PERSON CONTOURED BENCH SEAT

Tough, durable and built to enhance every driving experience — yes, we’re talking about the seat. Contoured for three passengers, the center seat is positioned up and forward to maximize space and comfort, and the covering is designed to resist both the elements and heavy use.

• LCD DISPLAY

The multi-function LCD dash display is large enough to host loads of information, in an easy-to-read way, like speed and fuel level. RPM and transmission mode. Fuel gauge, water temperature, trip information and more. It even includes a clock, so you’ll always know when it’s time for some fun.

SAFETY

• DRIVER/PASSENGER PROTECTION

The Occupant Protection Structure uses large-diameter tubing, and meets OSHA’s rollover protection standard. The hard doors and roll-up side nets help keep debris from entering the cabin, and auto-style three-point seatbelts are equipped with an emergency locking retractor mechanism, to help optimize passenger security. When you put this much safety first, fun is sure to follow.

• Year: 2020
• Make: Honda
• Model: Pioneer 1000-5
• Trim: Deluxe
• Stock Number: 404634
• VIN: 1HFVE0422L4404634
• Condition: Used
• Type: Utility
• Mileage: 7,478
• Primary Color: RED

• Frame: Steel
• Front Travel (in): 10.6
• Front Travel (mm): 268
• Number Rear Shock Absorbers: 2
• Rear Adjustable Shock / Spring Pre-Load
• Rear Stabilizer Bar
• Rear Suspension Material: Steel
• Rear Travel (in): 10
• Rear Travel (mm): 254
• Steering Control: Steering Wheel
• Steering Type: Power
• Suspension - Front: Independent Double Wishbone
• Suspension - Rear: Independent Double Wishbone

• Clock
• Digital Instrumentation
• Hour Meter
• Seat Material: Vinyl
• Seat Type: Bucket

• Transmission Type: Manual / Automatic Clutch
• Engine Braking System
• Differential Lock
• Differential Lock Location: Front / Rear
• Driveline Type: Selectable 4X2 / 4X4
• Number Of Driveline Modes: 4
• Hi / Low Range
• Number Of Speeds: 6
• Primary Drive (Front Wheel): Shaft
• Primary Drive (Rear Wheel): Shaft
• Reverse

• Bore (in): 3.62
• Bore (mm): 92
• Carburetion Type: Fuel Injected
• Compression Ratio: 10
• Cylinders: 2
• Displacement (ci): 60.9
• Engine Cooling: Liquid
• Engine Size (cc): 999
• Engine Stroke: 4-Stroke
• Fuel Capacity (gal): 7.9
• Fuel Capacity Reserve (gal): 1.7
• Fuel Capacity Reserve (l): 6.4
• Fuel Injector
• Fuel Injector Size (mm): 44
• Fuel Requirements: Regular
• Starter Type: Electric
• Stroke (in): 2.96
• Stroke (mm): 75.1
• Valve Configuration: OHV
• Valves: 8
• Valves Per Cylinder: 4

• Cab / Bed Divider
• Cab Cage
• Cab Doors
• Cab Doors Material: Hard
• Cab Rollbar
• Front Fender Flairs
• Power Outlet
• CV Boot Cover
• Brush Guard
• Radiator Guard

• Brakes - Front: Hydraulic Disc
• Brakes - Rear: Hydraulic Disc
• Front Brake Diameter (in): 8.3
• Front Brake Diameter (mm): 210
• Rear Brake Diameter (in): 8.3
• Rear Brake Diameter (mm): 210
• Seat Belts
• Headlight(s)

• Bash Plate (Front)
• Bed Capacity (kgs.): 226.8
• Bed Capacity (lbs.): 1000
• Body Material: Plastic
• Cargo Bed Material: Polyethylene
• Cargo Bed Tilt
• Front Tire Diameter (in): 27
• Front Tire Width: 9
• Ground Clearance (in): 12.4
• Ground Clearance (mm): 315
• Height (Inches): 76
• Height (mm): 1938
• Length (Inches): 116
• Length (mm): 2961.6
• Payload Capacity (kgs): 453.6
• Rear Hitch
• Rear Tire Diameter (in): 27
• Rear Tire Width: 11
• Towing Capacity (kgs): 907.2
• Towing Capacity (lbs): 2000
• Turning Radius (ft): 13.8
• Wet Weight (kg): 775.2
• Wet Weight (lbs): 1709
• Wheelbase (in): 80.2
• Wheelbase (mm): 2037.1
• Wheels Composition: Aluminum
• Width (Inches): 63
• Width (mm): 1600.2
